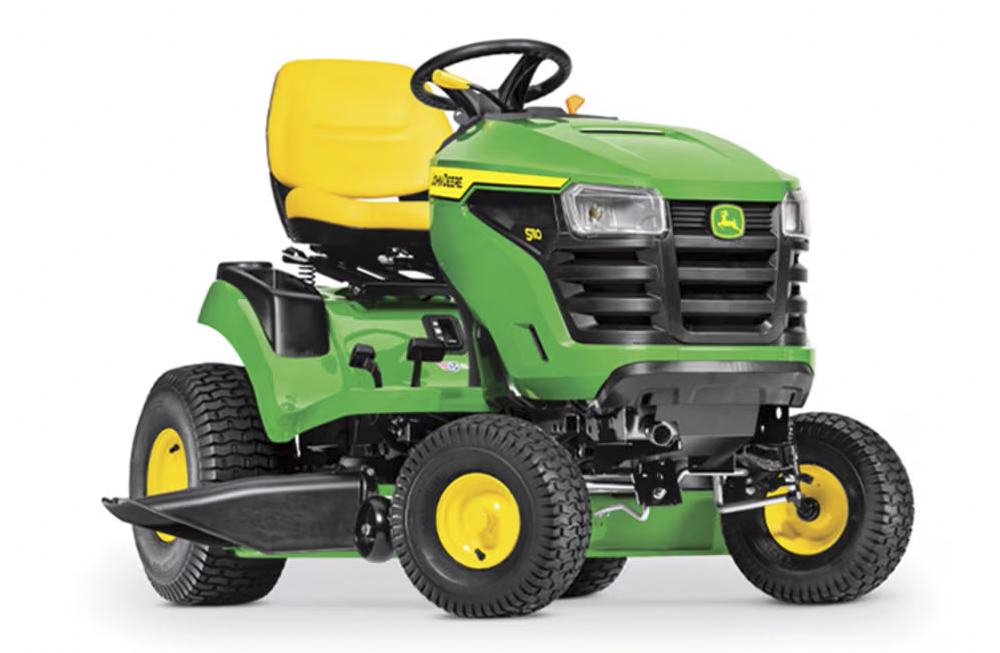

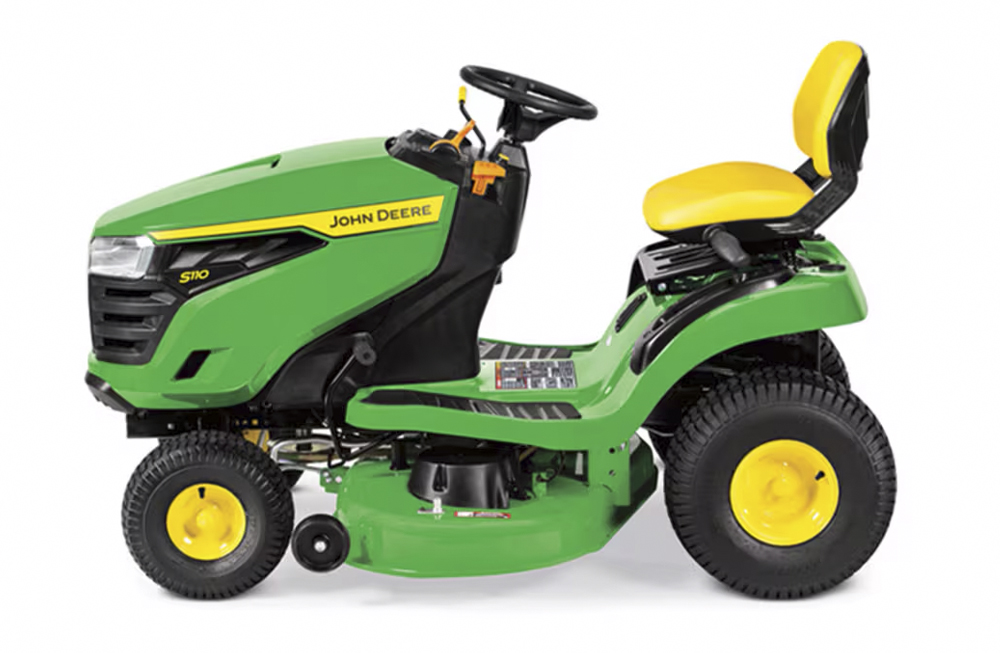

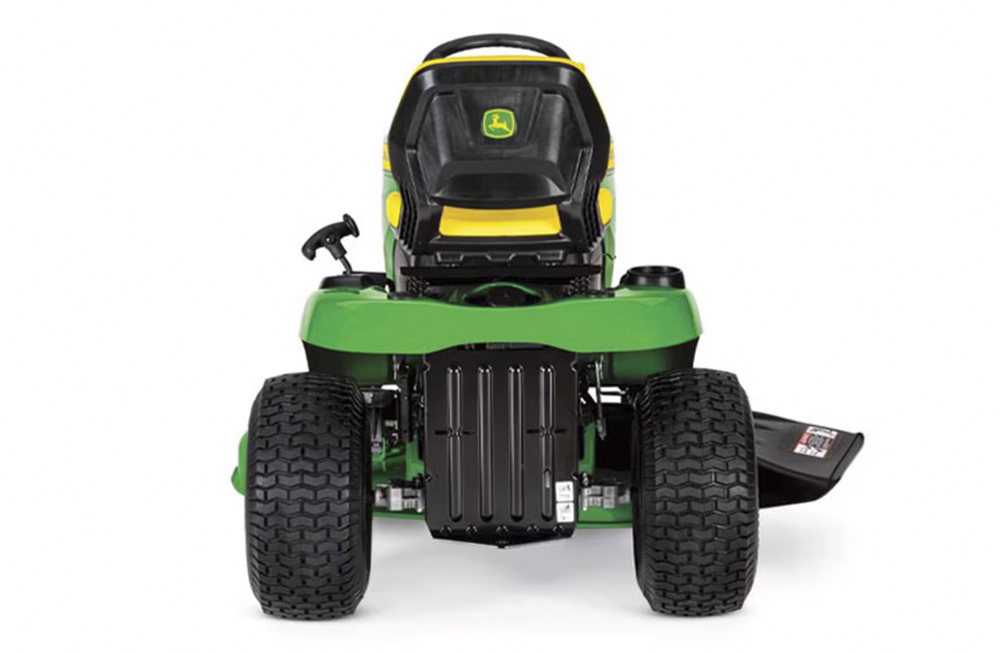

S110 Lawn Tractor
Key Features
- 19 hp (14.2 kW)* Engine
- 42-in. Edge™ Mower Deck
- Spring-assisted hand grip lever raises and lowers deck easily
- 15-in. open back seat
- Operator station is wide and comfortable
- 2 year/120 hour bumper-to-bumper warranty
Additional Links
19-hp (14.2-kW) engine
Engine oil filter and fuel filterA 19-hp (14.2-kW) single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging:
- Electronic ignition for fast starts
- Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
- Cast-iron cylinder liner for long engine life
- Overhead valves for excellent power and fuel economy
- Anti-vibration system
- Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
- More effective when operating the tractor on an incline
- Large fuel filter for trouble-free operation
No-tools oil drain valveNo-tools oil drain valve is easy to access when changing engine oil.
Fuel tank
Convenient fuel filler opening- The capacity is 2.4 U.S. gal. (9.1 L).
- The fuel filler opening is conveniently located under the seat.
- Filling the tank without spilling is easy.
- A tethered fuel tank cap is more convenient.
- The sealed fuel cap helps keep vapors inside the tank.
Solid one-piece frame
Solid one-piece frame The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:
- Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
- One-piece, steel fender deck is bolted to the frame.
Cast-iron front axle will not bend
Front axle and wheel spindleThe front axle is constructed of solid cast iron that will not bend:
- Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
- Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
- Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.
Front bumper protects the tractor
Front bumper
Front bumperThe front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.
- Additional front-end protection
- Attractive, bold style
CargO Mount™ system makes installation of rear bagger and other attachments easy
Rear CargO Mount points
Front CargO Mount points at the top of the dashboard
Rear bagger is mounted with CargO Mount points
Rear bagger is mounted with CargO Mount pointsThe CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

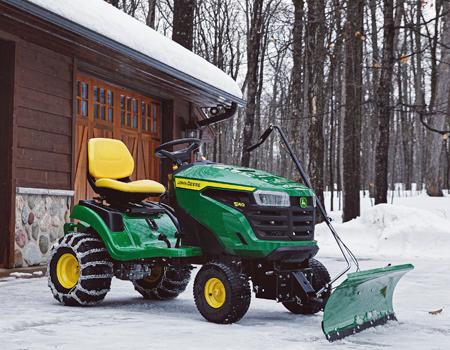

S140 Tractor with front blade, weights, and tire chains

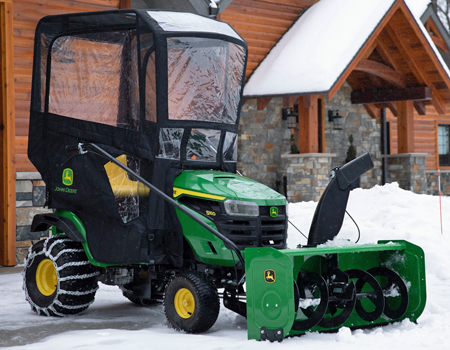

S160 Tractor with snow blower, weather enclosure, weights, and tire chains
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
- 44-in. (112-cm) Snow Blower
- 46-in. (117-cm) Front Blade
- Tire chains or TerraGrip traction belts
- Weather enclosure
- Weights
Two-pedal speed/direction controls
Forward speed control pedal in useA Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:
- Automotive-type accelerator controls ensure easy operation.
- Operator can change direction without lifting foot off the platform.
- Large pedal surface gives superior operator comfort.
Hydrostatic transmissionAppropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
- Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
- Tuff Torq K46 – S170 and S180
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.
Comfortable operator station (S130 shown)
Comfortable operator station (S130 shown)The operator station is designed for operator comfort and easy operation:
- Controls are positioned where they are easy to reach and use to control the tractor.
- The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
- The seat is positioned to provide the most comfortable operator position.
Steering wheel and dash (S130 shown)
Wide footrest with debris-removal channelsControls are easy to see and use:
- Large, three-spoke steering wheel for greater operator comfort and control
- Ignition switch is on the dash for starting ease
Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:
- The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.
- Debris-removing channels help keep the footrest area clean and dry.
Comfortable seat
Easily adjusted seatOperator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:
- The open-back seat design keeps the operator cooler
- Especially helpful when operating the tractor for extended periods of time
- Easily adjusted forward or rearward while in the seat
- Seat travel of 5.5 in. (14 cm) and 10 different positions to adjust for operator height
Seat springs give a smoother ride
Seat tilted forwardTwo long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.
Storage compartment and beverage holderStorage compartment and beverage holder, located on the right-side fender, are conveniently located and easy to use.
NOTE: A storage compartment cover is standard on S120, S130, S160, S170, and S180 Tractors and optional on the S100, S110, and S140.
Fender flaresFender flares included on the S130 Tractor cover the tires more completely and add style to the tractor.
S100 Tractor
Steering wheel and controls on S100Instruments and controls
The contoured dash has clean, attractive styling:
- Controls are color-coded and labeled for easy identification.
- Controls are logically placed and easy to reach.
- The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
- Functional design of the controls provides good appearance and a comfortable feel.
Side-by-side transmission control pedals
Two-pedal speed/direction controls
Side-by-side foot pedalsSide-by-side foot pedals control the speed and direction of travel:
- Automotive-type accelerator controls ensure easy operation.
- Operator can change direction without lifting foot off the platform.
- Large pedal surface gives superior operator comfort.
Mower deck height adjustment
Mower deck height adjustment leverA spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
- Increments of 1/4 in. (0.64 cm) allow fine-tuning the cut height.
- Cut height is adjustable from 1 to 4 in. (2.5 to 10.2 cm).
- The lift handle is shaped for easy use and is out of the way of entering or exiting operators.
Parking brake control
Brake/parking brake pedal
Parking brake leverThe parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.
Manual power take-off (PTO)
PTO engagement leverThe mower deck is engaged with the easy-to-see and easy-to-use yellow lever above the dashboard. Its placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor.
Reverse implement option (RIO)
RIO switchUsing RIO
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
- Carefully check the area around the machine.
- Disengage the mower before backing up.
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
- Stop forward travel.
- Look behind the machine to be sure there are no bystanders.
- Push and hold in the RIO switch while depressing the reverse pedal slightly.
NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.
- Release the RIO switch and reposition the machine as the machine begins to move rearward.
- Resume forward travel. The mower or other attachment should continue operating.
- Repeat procedure to position the machine again.
Fuel tank gauge shows fuel level from the operator’s seat
Fuel tank gauge Convenient fuel- filler openingThe fuel tank gauge shows how much fuel is in the tank and can be seen without leaving the operator’s seat:
- Easy to check fuel level
- Convenient location

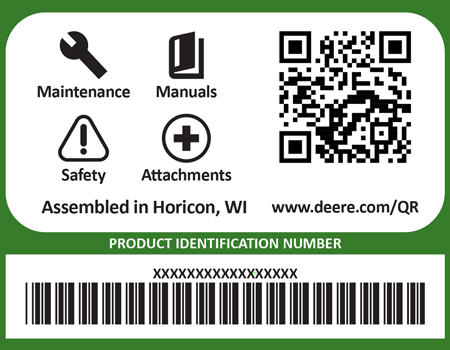

Example quick-response (QR) code label
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

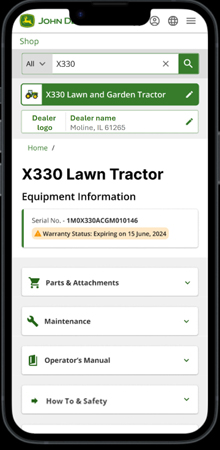

Upper portion of owner support web page.

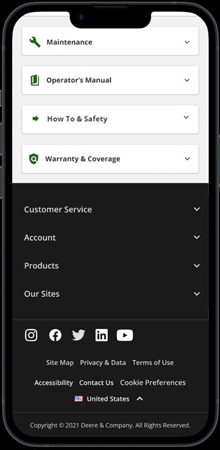

Lower portion of owner support web page.
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.
Serviceability is convenient with an easy-open hood
One-piece hood is easy to open
Service interval decal located under hood
The one-piece hood opens easily to permit checking and servicing the engine:
- Important service points are located within easy reach.
- A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
Easy-to-service engine fuel and oil filters
Easy access to fuel-fill opening
The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
The seat tilts up and out of the way to make adding fuel easy.
Hood will not rust or dent, and includes quality headlights.
One-piece hood with quality headlights
- Molded-in color material reduces sound and will not rust or dent.
- Same quality hood material as on larger John Deere tractors provides good resilience and UV resistance for an extended time
- Openings on the side let in plenty of cooling air while keeping the sound level low.
- Two headlights provide good lighting for nighttime operation.
MowerPlus home screen
MowerPlus maintenance screen
Overview
Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.
Benefits
- Engine hours, fuel level, and battery health (as compatible)
- Mowing history with time, distance, area, and speed
- Current day and five-day weather forecast based on location
- Walk-through setup guides
- Expert mowing tips
- Useful attachments for future purchase
- Periodic maintenance reminders
- Safety instructions
To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.
Additional details
MowerPlus connectors (sold separately)
MowerPlus Deluxe Smart Connector, with a phone
Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.
BUC10929 MowerPlus Deluxe Smart Connector is for use with:
- All S120, S130, S160, S170, and S180 Tractors
- Model year 2021 and newer S240 Tractors (serial number 880,001-)
- Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)
BUC10537 MowerPlus Smart Connector is for use with:
- Model year 2016 and newer Select Series X300 and X500 Tractors
MowerPlus connectors transmit the fuel level and engine hour information to the app, making it easy to keep track of fuel level and maintenance intervals.
MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
42-in. (107-cm) Edge cutting systemThe Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:
- The deep-deck design lifts grass for a clean, even cut.
- The smooth underside has no nooks and crannies, preventing grass buildup and evenly dispersing grass clippings.
- The rolled outer edge of the deck provides extra strength and protection.
- Dual-stage E-coat and powder paint coatings provide extra protection from rust.
- Flexible discharge chute minimizes property and mower deck damage.
The 42-in. (107-cm) Edge Mower Deck is a two-spindle design with heavy-duty characteristics:
- The 13-gauge, 0.09-in. (2.3-mm) steel deck provides years of dependable mowing.
- Included three-in-one blades work well for side-discharge, mulching, or bagging.
- The blade-to-spindle design provides a unique mounting system for the mower blade that provides extra safety and convenience.
- No tools are required to switch from mulching to side discharge to rear bagging.
- A mulching cover is an optional attachment that can be installed without tools to allow mulching with the standard mower blades.
- High-performance mulching blades are available to enhance mulching performance.
- A high-performance mulching attachment is an optional attachment that includes a mulch plug and special mulching blades for excellent performance.
Mower wash port
Mower wash port
Mower wash port with hose connectorA wash port is provided to make cleaning the underside of the mower deck easy:
-
A hose connector is included with mower deck.
StarLock™ blade design
StarLock blade designThe StarLock blade design keeps the blade bolt at the correct torque for easy removal.
Optional blades for difficult mulching or bagging conditions are available.
Optional bagger
6.5-bu (229-L) hopper and chute on an S100A cut-and-throw, 6.5-bu (229-L) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.
The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.
A 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.
- The warranty is hassle free, with both the mower and the engine covered by a single warranty.
- If the mower is sold, the remaining warranty term is transferable to a new owner.
*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
Key Specs
| Engine power | 19 hp 14.2 kW |
|---|---|
| Oil change | No-tools oil drain with replaceable filter |
| Engine manufacturer/model | 33R877 (M33) |
| Transaxle type | TLT200 hydrostatic, two-wheel drive |
| Transaxle control | Side-by-side pedals |
| Rear tires | 20×8-8 |
| Lift system type | Spring-assisted hand-grip lever |
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
| U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 19 hp 14.2 kW |
|---|---|
| Displacement | 33 cu in. 540 cc |
| Manufacturer/model | 33R877 (M33) |
| Type | Overhead valve, full-pressure lube, oil filter |
| Cylinders | One |
| Governor | Mechanical |
| Choke/speed control | Single lever with spring-return on choke |
| Cooling method | Air |
| Air cleaner | Cartridge |
| Oil change | No-tools oil drain with replaceable filter |
Fuel system
| Type | Gasoline |
|---|---|
| Fuel delivery | Pulse pump and carburetor |
| Fuel gauge | Mechanical, viewable from seat |
| Fuel tank location | Rear |
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
Electrical system
| Battery | 12 V 300 CCA |
|---|---|
| Charging system | Regulated, 8 amp |
| Engine starter | Bendix type |
| Hour meter | Yes |
| Headlights | Two standard, incandescent |
| Taillights or reflector | No |
| Backup lights | No |
| Rear work lights | No |
| 12-V outlet | No |
Transaxle
| Type | Hydrostatic, 2-wheel drive |
|---|---|
| Control | Side-by-side pedals |
| Cruise control | No |
| Oil cooler | Fins and fan on transaxle |
| Oil filter | Yes, not serviceable |
| Differential lock | No |
| Forward speed | 0-5.5 mph 0-8.9 km/h |
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
| Brakes | Internal wet disk |
Chassis
| Frame | Full-length welded steel |
|---|---|
| Primer/paint | E-coat/powder |
| Weight bracket | Optional rear |
| Receiver hitch | No |
| Front axle | Cast-iron front axle, powdered-metal front wheel bushings |
| Spindle bushings | No |
| Front tires | 15×6-6 |
| Rear tires | 20×8-8 |
| Hood material | Molded-in color material reduces sound, will not rust or dent |
| Fender deck material | Stamped steel |
| Floor mats | Yes, with debris removing channels |
| Storage | Storage tray with optional cover |
| Service interval decal | Yes |
| Fender handles/grips | No |
| Cup holder | Yes |
| Equipment mounting | CargO Mount™ system |
| Maximum towing capacity | 500 lb 227 kg |
Steering
| Type | Sector and pinion with single drag link and tie rod |
|---|---|
| Four-wheel steer | Not available on this model |
| Steering wheel | Standard, diameter – 12 in. 30.5 cm |
| Tilt steering wheel | No |
| Turning radius | 18 in. 45.7 cm |
| Uncut circle radius | 25 in. 63.5 cm |
Seat
| Type | Two piece with open-back |
|---|---|
| Seat back height | 15 in. 38 cm |
| Armrests | No |
| Fore-aft adjustment | While seated, 5.5 in. 14 cm |
| Seat suspension | Tilt, two coil springs |
Lift system
| Type | Spring-assisted hand-grip lever |
|---|---|
| Hydraulic outlets | No |
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | No |
Mower deck
| Type | Side discharge |
|---|---|
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
| Construction | Stamped steel deck shell |
| Mower deck material | Steel, 13 gauge 0.090 in. 2.3 mm |
| Mower wash port | Yes |
| Mower drive system | Manual power take-off (PTO) |
| Mower wheels | Two |
| Mower wheel adjustment | One bolt |
| Mower level adjustment | Easy-level deck |
Mower attachability
| Type | Slide under tractor |
|---|---|
| Front draft arms | One spring clip |
| Rear draft arms | Two spring clips |
| Mower wheels rotate | No |
| Drive system | Single belt |
Safety
| Meets ANSI standard | Yes |
|---|---|
| Meets OPEI standard | Yes |
| Backup protection | Reverse Implement Option (RIO) |
| Safety video | Yes |
Buyer’s notes
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame |
|---|---|
| Warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional equipment
| Rear bagger | 2-bag, 6.5 bu 229 L |
|---|---|
| Mulching system | Mulch cover or high-performance plug |
| Front blade | 46 in. 116.8 cm |
| Snow blower | Two-stage, 44 in. 111.8 cm |
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L |
| Spreader | Tow-behind only, 125-175 lb 57.7-80 kg |
| Front bumper | Styled front bumper |
| Weather protection | Weather enclosure |
| Sun canopy | Sun canopy |
| Bucket holder | Yes, single bucket |
| Grass striping | Lawn striping kit |
| Tow-behind tools | 16 |
Dimensions
| Height | 44 in. 112 cm |
|---|---|
| Overall length | 69.7 in. 1770 mm |
| Wheelbase | 48.9 in. 1242 mm |
| Width with mower | 55.2 in. 1402 mm |
| Width with mower (deflector raised for storage) | 46.5 in. 1181 mm |
| Width without mower | 39.2 in. 996 mm |
| Weight | Mower, no fuel, 414 lb 188 kg |
Additional information
| Manufacturing location | Greeneville, Tennessee, USA |
|---|---|
| Date collected | 26-Mar-22 |
No Interest if Paid in Full within 9 months1
on New John Deere 100 Series Lawn Tractors
- No Interest if Paid in Full within 9 months1
- Offer available 01 26 October 2024 through 03 February 2025
Apply for a Revolving Plan Account
1Offer valid on qualifying purchases made 26 October 2024 through 03 February 2025. Subject to approved credit on a Revolving Plan account, a service of John Deere Financial, f.s.b. For consumer use only. No down payment required. Interest will be charged to your account from the purchase date at 17.90% APR if the purchase balance is not paid in full within 9 months or if your account is otherwise in default. Available at participating U.S. dealers. Prices and models may vary by dealer. Offer available on new equipment and in the U.S. only. Prices and savings in U.S. dollars.
